Hydraulic Control Panels
Product Overview

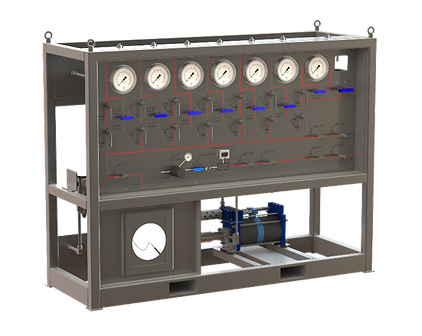

Our range of Hydraulic Control Panels are engineered to operate various equipment such as Subsea Valve actuators, BOP’s and Hydraulic Actuators. They are designed to accommodate operating various systems whilst utilising a single unit. Available with options for both onshore and offshore use our hydraulic control panels operate at up to 20,000 psi as standard with flow rates of up to 16LPM.
As well as the standard range we also offer a bespoke design service to ensure we can meet any requirement.
Key Features
-
Hydraulic Oil or Water/Glycol Fluid Options
-
Flow rates up to 16 LPM (3.55 Gallons) per minute as standard
-
Pressures up to 20,000 PSI (1,400 Bar) as standard
-
3,4,5 and 6 station control panels are available as standard
-
Built in adjustable relief valve
-
Integral drip tray to prevent spillages
-
Panel mounted controls and instrumentation for easy operation
-
Bespoke designs available
-
Atex/DNV Options available
HCP-A Range – Air Operated
The air operated HCP-A Hydraulic Control Panel range is capable of reaching pressures of up to 20,000 psi (1,380 Bar)
and flow rates of up to 16 LPM (3.55 Gallons). Designed using high pressure air pumps to ensure for high accuracy and repeatability for maximum performance.
