Air Operated Tensioner Pumps
Diamond Tensioner Pumps
Our DIAMOND air operated tensioner pump range has been designed to ensure the highest quality in the field. The framework and pipework are all stainless steel as standard ensuring the best possible resistance to corrosion.
The standard range is ideal for everyday applications, but for more robust requirements the DIAMOND-PRO and DIAMOND-PRO MAX options are available to give higher flows and pressures.
The pumps have been designed to minimise service time by moving the air seals externally ensuring downtime is kept to an absolute minimum.
Key Features
-
1,500 Bar (21,750psi) / 2,500 Bar (36,250psi) hydraulic pressure options
-
Air Relief Valve to limit pressure
-
Stainless Steel Frame as standard
-
Stainless Steel pipework as standard
-
7.5 litre tank
-
6” Dual Scale Gauge
-
Regulator can be set for repetitive pressures
-
QUICK-SERVICE design
Performance Charts
Diamond Tensioner
Pump
Diamand-Pro
Tensioner Pump

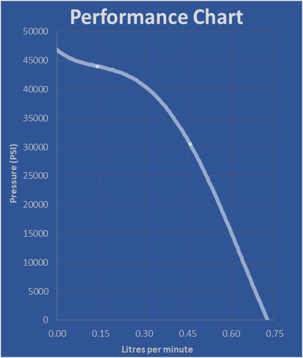

Diamand-Pro Max
Tensioner Pump
Dimensions
As standard the Diamond Tensioner Pump Range is designed and manufactured to be compact and light. The Diamond, Diamond Pro and Diamond Pro Max pumps are all available with larger tanks as an option but as standard the dimensions for all models are:
